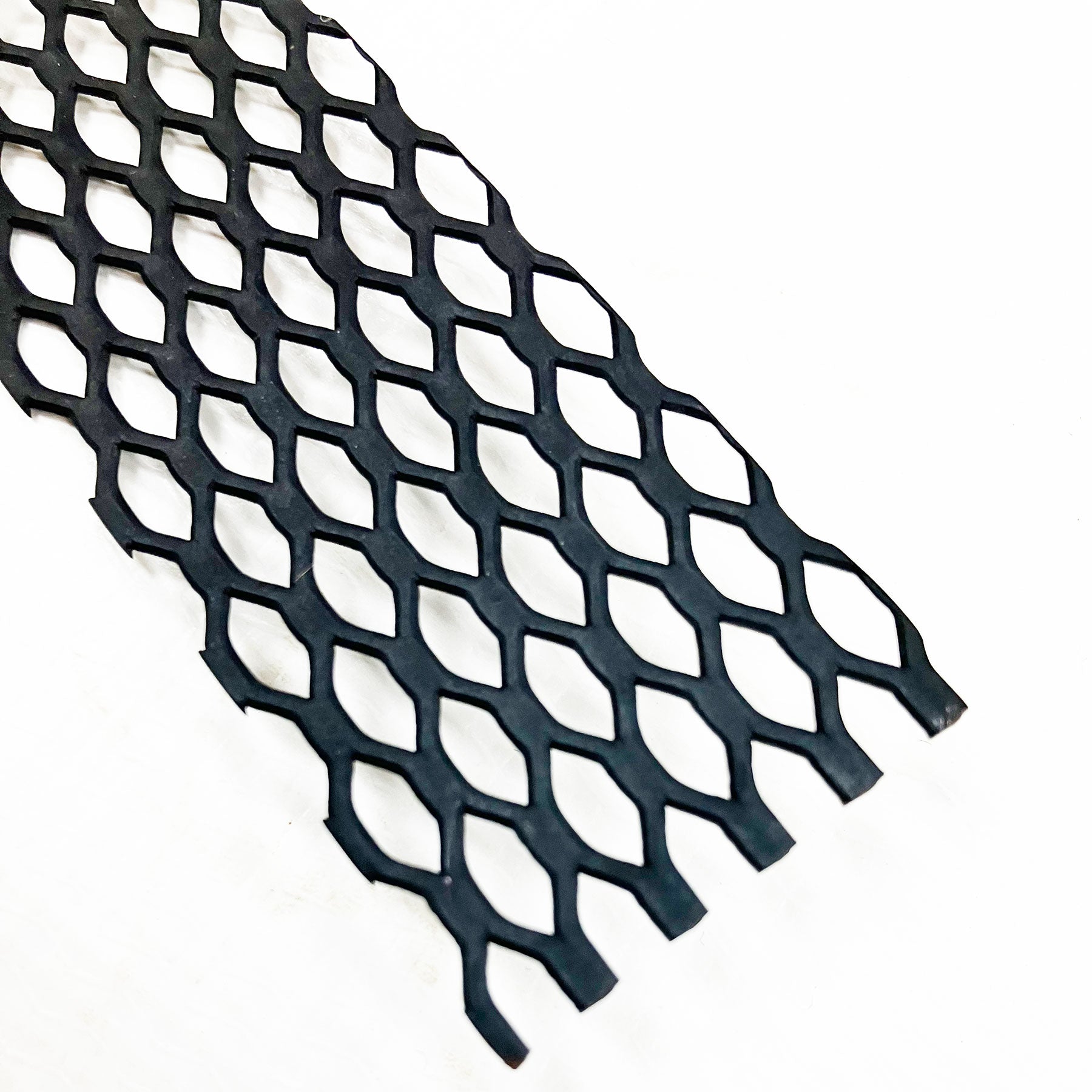

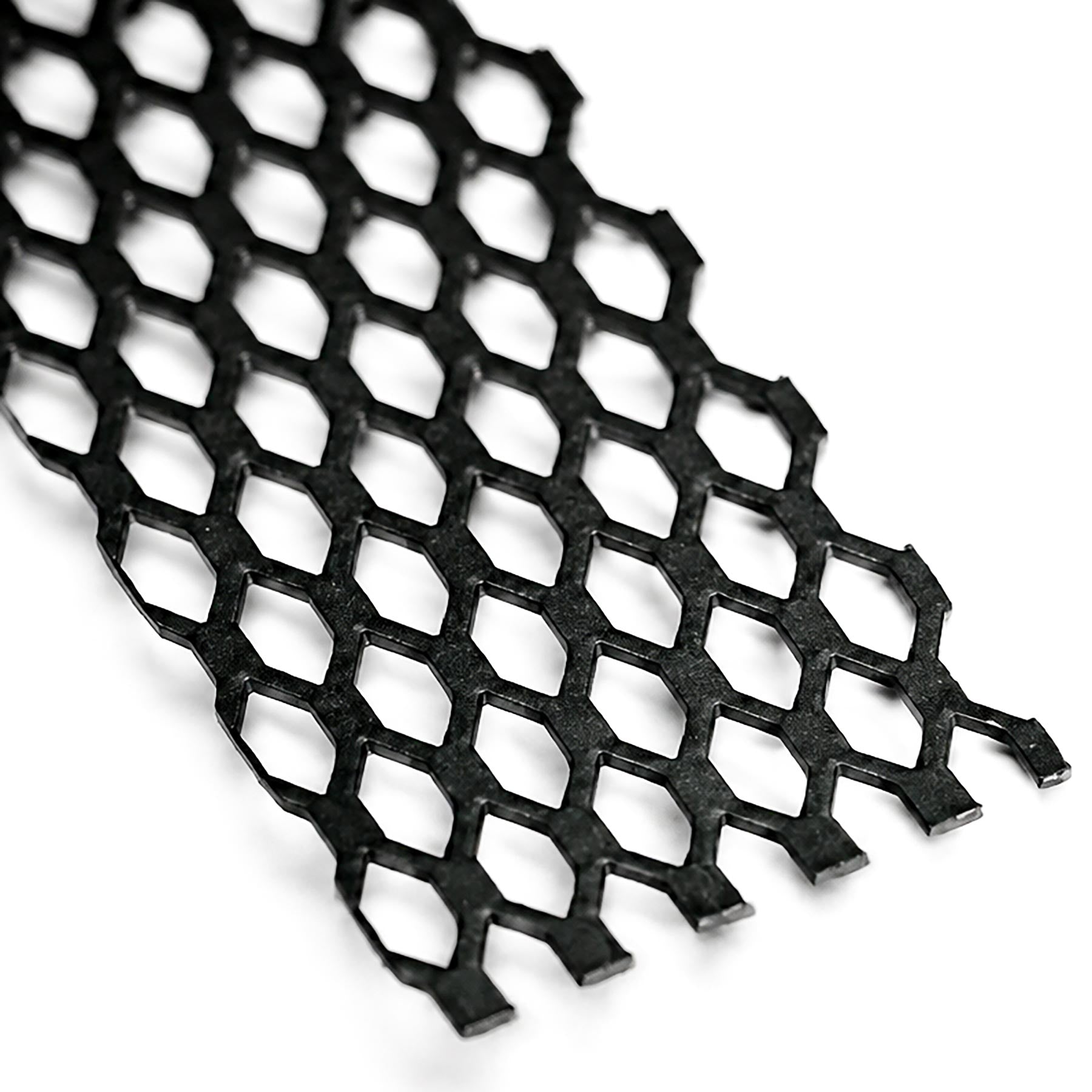

TELPRO Mesh Anodes are manufactured using a titanium expanded mesh substrate that meets ASTM B265 Grade 1 or Grade 2 and is coated with TELPRO mixed metal oxide coating.
TELPRO MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.

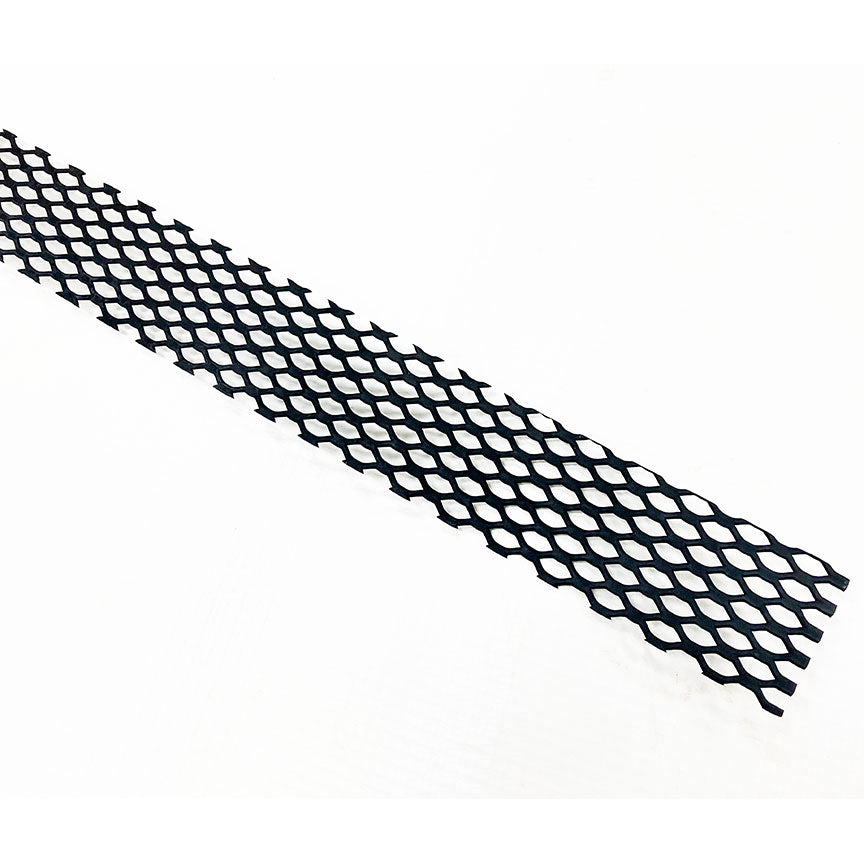

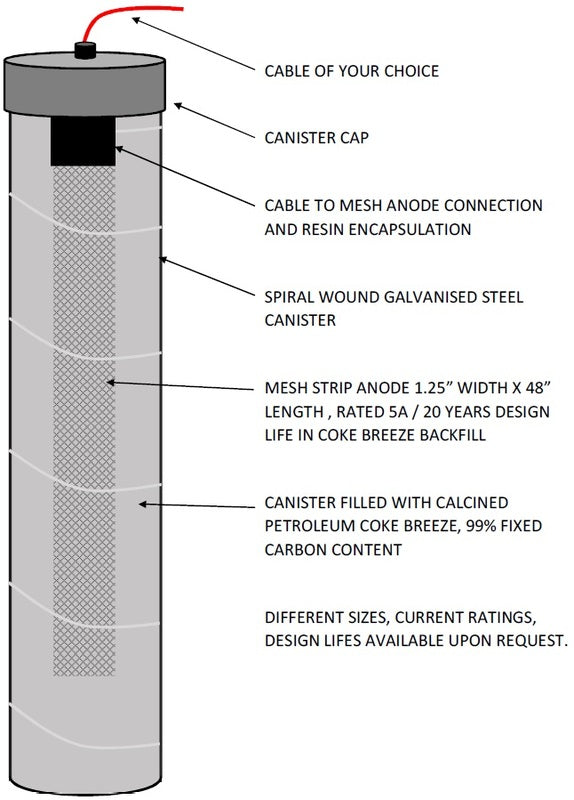

TELPRO’s Canistered Mesh Anodes have been designed specifically to replace the massive 3” x 60” silicon iron anodes typically used in horizontal and shallow ground beds. The TELPRO Mesh Strip Anode is 1.25” wide by 48” long and is rated at 5 amps for a 20-year design life in fine petroleum coke. TELPRO Mesh Strip Anodes can be packaged in galvanized steel canisters or flexible fabric sleeves, both of which are available in a wide variety of diameters and lengths.
Based upon accelerated life testing conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings which are currently being used;
a copy of this test report is available for download under 'Quality' on TELPRO's home page.
Strict quality control procedures are followed throughout the entire coating process to guarantee proper coating adhesion and loading. Also, TELPRO products are tested using an X-ray fluorescence spectrometer to ensure production of the highest quality product, which is foremost in every step of the manufacturing process.
