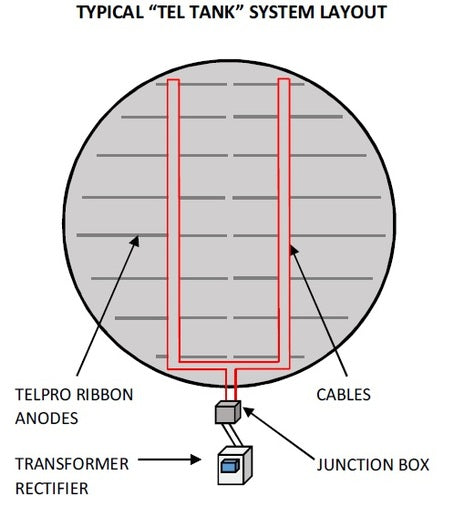

TELPRO TELTANK Anode Assemblies utilize TELPRO MMO Ribbon Anodes assembled on HMWPE cable and are designed for cost savings and ease of installation. TELPRO Ribbon is manufactured using titanium to ASTM B265 Grade 1 specifications and is coated with TELPRO mixed metal oxide coating that consists of IrO2TA2O5, making it suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.
TELPRO TELTANK Anodes are assembled to meet each individual customer’s requirements. Every TELTANK Anode System is factory assembled and ready for installation, so no field welds are required. All anode-to-cable connections are sealed using a moisture-resistant epoxy that has been helium-tested to ensure the quality of the seal and provide long-lasting protection.
Based upon accelerated life testing conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings which are currently being used.

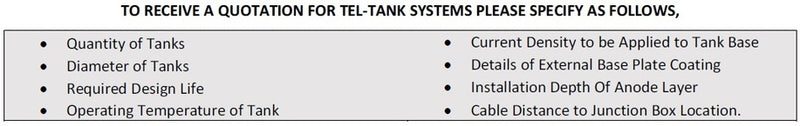

To receive a quotation for TELTANK systems, please specify the following:
- Quantity of tanks
- Diameter of tanks
- Required design life
- Operating temperature of tank
- Current density to be applied to tank base
- Details of external base plate coating
- Installation depth of anode layers
- Cable distance to junction box location
