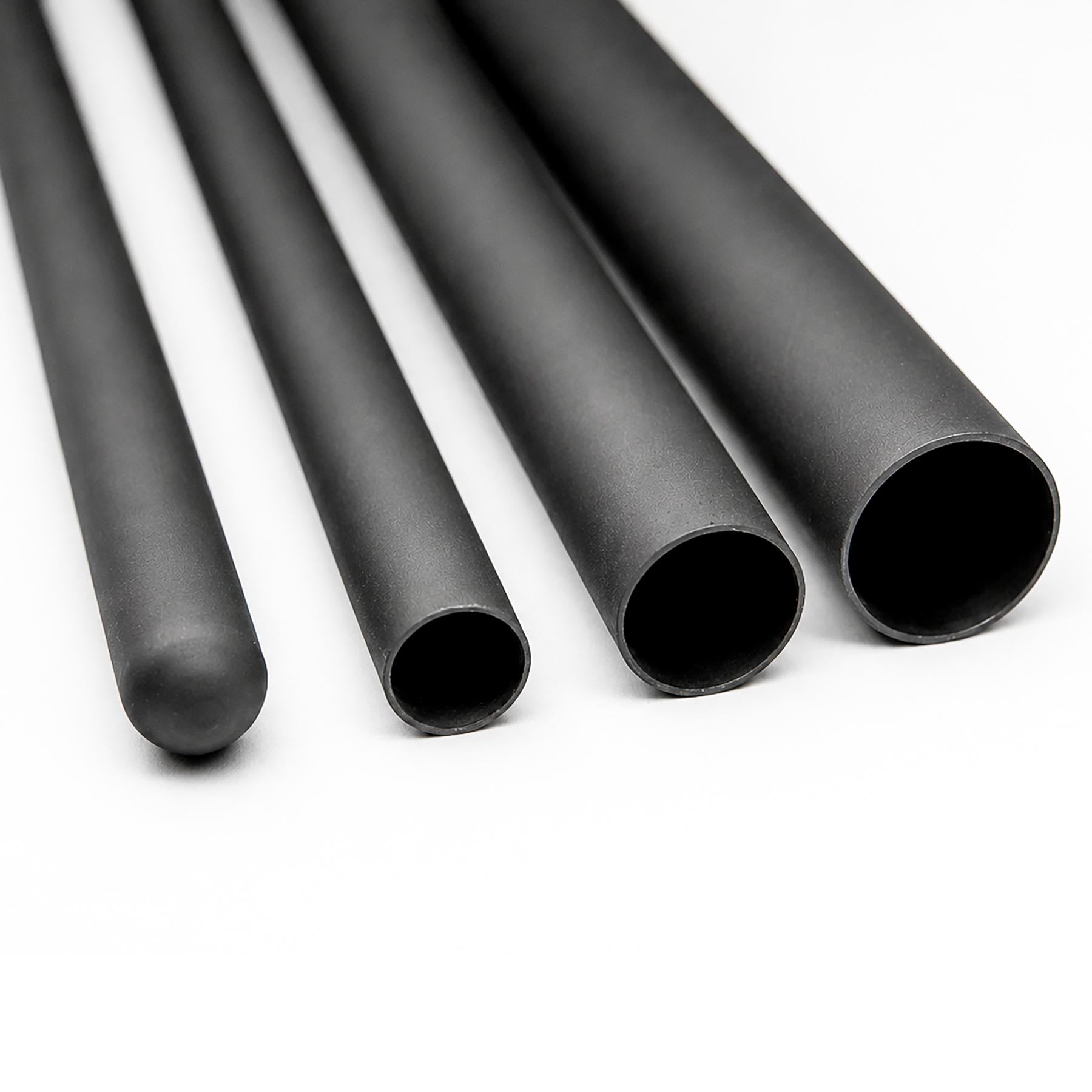

TELPRO Tubular Anodes are manufactured using titanium that meets ASTM B338 Grade 1 or Grade 2 standards and are coated with TELPRO mixed metal oxide coating, which consists of IrO2TA2O5 and is suitable for use in all cathodic protection applications.
Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.
Based upon accelerated life testing conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings that are currently being used.
Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.
Based upon accelerated life testing conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings that are currently being used.
TELPRO ADVANTAGES

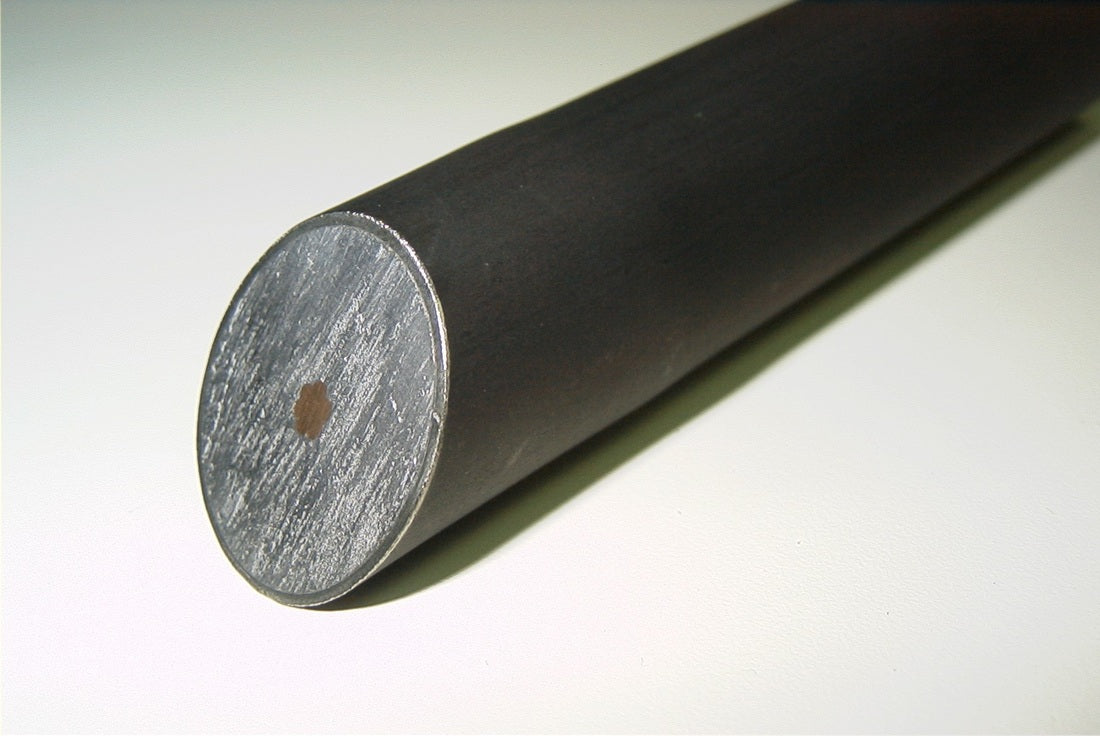

- Resin filled and helium tested for an effective seal of the connection
- Cable end of anode protected with teflon sleeve
- Center connection is tested for resistance and is less than .001 ohms
- Variety of cable types and sizes available
- Resin filled and helium tested for an effective seal of the connection
- Cable end of anode protected with teflon sleeve
- Center connection is tested for resistance and is less than .001 ohms
- Variety of cable types and sizes available
Anode current output and design life can be varied according to customers requirements.

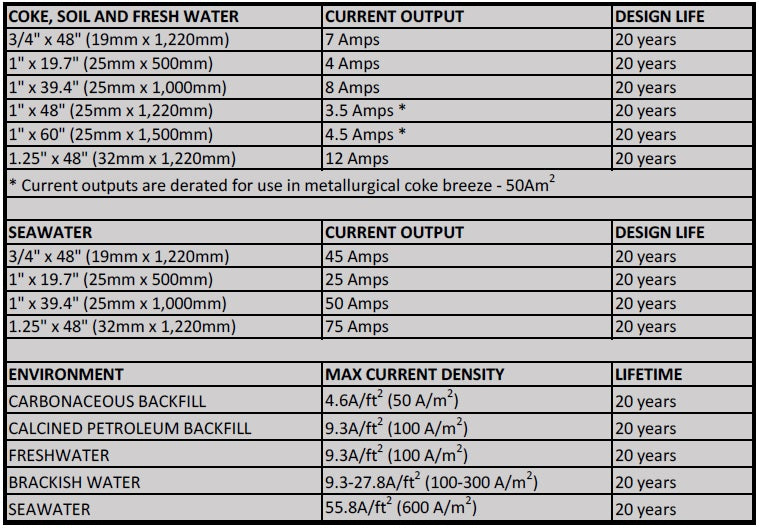

COKE, SOIL AND FRESH WATER CURRENT OUTPUT
(Design life for each is 20 years)
3/4" x 48" (19mm x 1,220mm) 7 Amps
1" x 19.7" (25mm x 500mm) 4 Amps
1" x 39.4" (25mm x 1,000mm) 8 Amps
1" x 48" (25mm x 1,220mm) 3.5 Amps*
1" x 60" (25mm x 1,500mm) 4.5 Amps*
1.25" x 48" (32mm x 1,220mm) 12 Amps
*Current outputs are derated for use in metallurgical coke breeze - 50Am2
SEAWATER CURRENT OUTPUT
3/4" x 48" (19mm x 1,220mm) 45 Amps
1" x 19.7" (25mm x 500mm) 25 Amps
1" x 39.4" (25mm x 1,000mm) 50 Amps
1.25" x 48" (32mm x 1,220mm) 75 Amps
ENVIRONMENT / MAX CURRENT DENSITY
CARBONACEOUS BACKFILL 4.6A/tt2 (50 A/m2)
CALCINED PETROLEUM BACKFILL 9.3A/tt2 (100 A/m2)
FRESHWATER 9.3A/tt2 (100 A/m2)
BRACKISH WATER 9.3-27.8A/ft2 (100-300 A/m2)
SEAWATER 55.8A/ft2 (600 A/m2)
