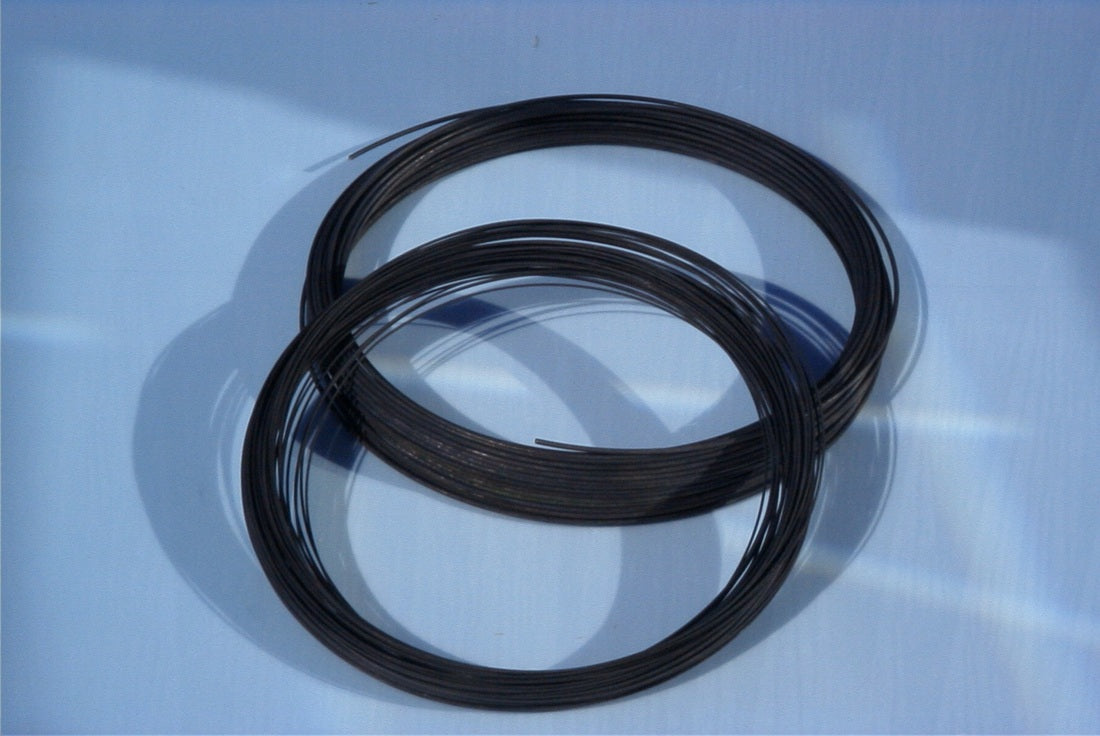

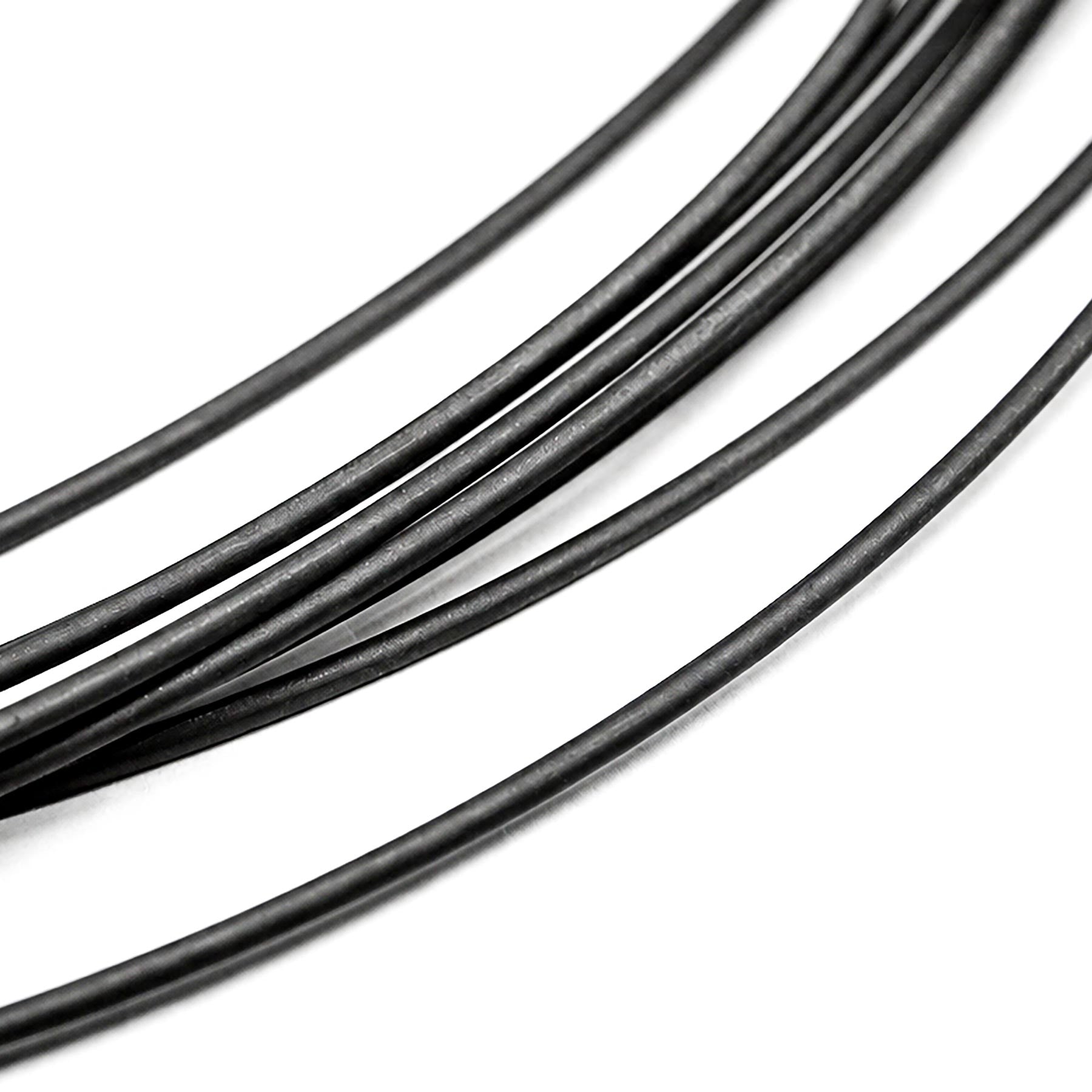

TELPRO MMO Wire Anodes are available in two standard sizes, 1.5mm diameter and 3mm diameter, with two standard current ratings. Other sizes and ratings are available upon request. TELPRO MMO Wire Anode consists of solid titanium wire that meets ASTM B863 Grade 1 or 2 standards and has been coated with TELPRO mixed metal oxide coating.
TELPRO MMO Anodes have an extremely low consumption rate. The titanium substrate remains constant throughout the design life of the anode.
TELPRO WIRE ANODES ELECTRICAL RESISTANCE
1.5mm diameter – 75,537 microhms/ft
3.0mm diamter – 18,884 microhms/ft
Approximate electrical resistance @ 25ºC. Mechanical properties are based on typical room temperature.
