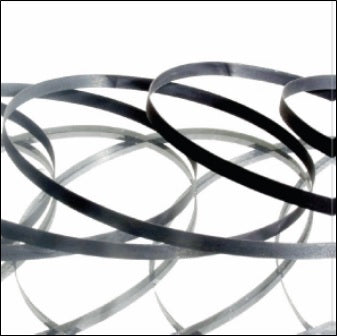

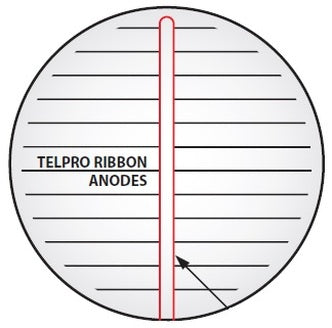

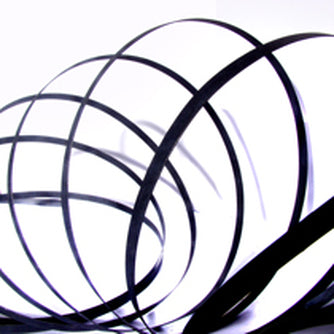

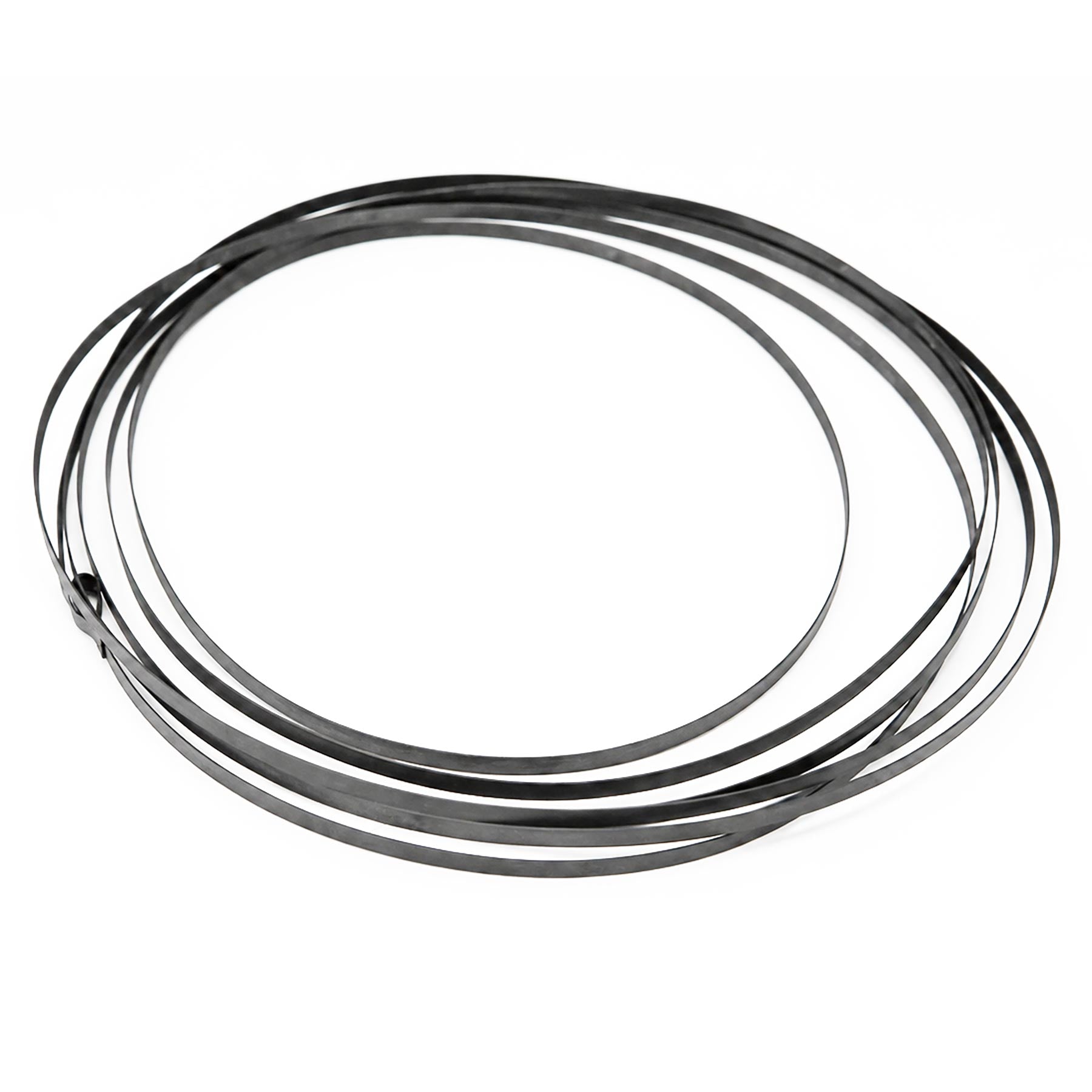

TELPRO Ribbon Anodes are designed for use in concrete and fine sand. The ribbon is manufactured using titanium substrate that meets ASTM B265 Grade 1 standards and is coated with TELPRO mixed metal oxide coating.
Working environment: Evolution O2, Cl2 or a combination of both.
Nominal dimensions of solid ribbon:
Width: 0.25” (6.35mm)
Thickness: 0.02” (0.6mm)
Standard coil length: 328 ft (100m)
Standard coil weight: 2.5 lbs (1.12kgs)
Surface area of ribbon: 0.014m2 per m
Current output of ribbon in fine sand:
12.8mA/ft (42mA per m) when operating at an anode current density of .278 A/ft2 (3 A/m2)
Design life:
50 years + when operating at an anode current density of .278A/ft2 (3 A/m2)
Current output of ribbon in concrete:
0.45 mA/ft (1.5mA per m) when operating at an anode current density of 10.19 mA/ft2 (110 mA/m2)
Design life:
100 years + when operating at an anode current density of 10.19 mA/ft2 (110 mA/m2)

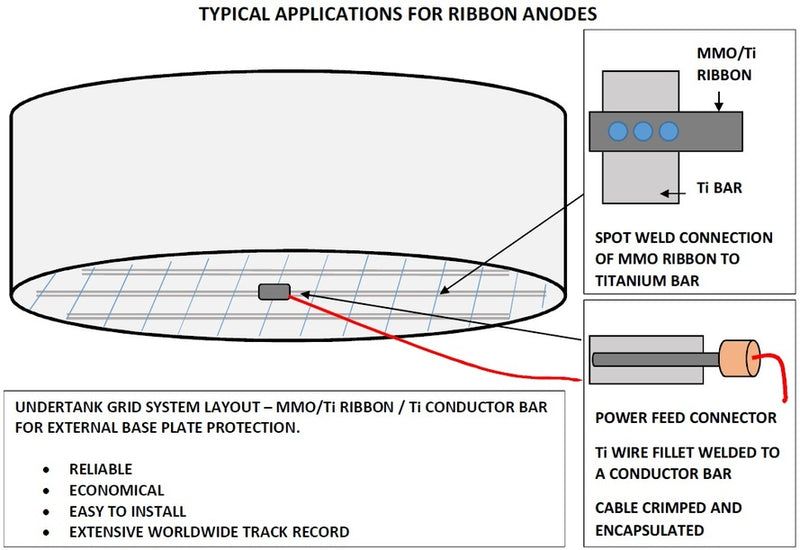

Titanium conductor bar dimensions:
Width: 0.50” (12.7mm)
Thickness: 0.035” (0.889mm)
Coil length: 328 ft (100m)
Coil weight: 8.5 lbs (3.8 kgs)
